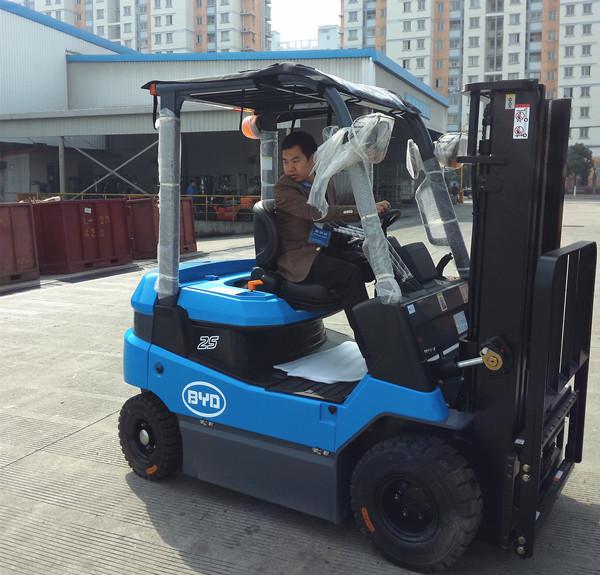

BYD Electric AC Motor Power Lift Truck 2500Kg Forklift Truck
Electric Forklift specification:
| Model | CPCD25 |
| Features | 1.1 | Manufacturer | | BYD |
| 1.2 | Driver | | |
| 1.3 | Operator type | | |
| 1.4 | Load capacity/rated load | kg | 2500 |
| 1.5 | Load center | mm | 500 |
| 1.6 | Load distance center of support arm wheel to face of forks | mm | 415 |
| 1.7 | Wheelbase | mm | 1400 |
| Weight | 2.1 | Service weight including battery | kg | 2850 |
| 2.2 | Axle load with load driver/castor/fork wheel | kg | 3880/470 |
| 2.3 | Axle load without load driver/castor/fork wheel | kg | 1320/1530 |
| Wheels | 3.1 | Drive/castor/fork wheel | | |
| 3.2 | Wheel size ,front | mm | 6.00-9 |
| 3.3 | Wheel size ,rear | mm | 5.00-8 |
| 3.4 | Additional wheels dimensions | mm | |
| 3.5 | /x= Wheels number front /rear=driven wheels | | 2X/2 |
| 3.6 | Track width front | mm | 890 |
| 3.7 | Track width rear | mm | 900 |
| Size | 4.1 | Overall length | mm | 3150 |
| 4.2 | Length of face of forks | mm | 2100 |
| 4.3 | Overall width | mm | 1060 |
| 4.4 | Fork height | mm | 3000 |
| 4.5 | Max height | mm | 4230 |
| 4.6 | Min height | mm | 2020 |
| 4.7 | Overhead guard height | mm | 2100 |
| 4.8 | Height of tiller indrive position | mm | 1156 |
| 4.9 | Stand heightoptional platform | mm | 715 |
| 4.1 | // Fork dimensions | s/e/l mm | 35X100X1070 |
| 4.11 | Width over forks | mm | 1000 |
| 4.12 | Tilt range Before / after | deg | 711 |
| 4.13 | Free Lift | mm | 105 |
| 4.14 | | mm | 3370 |
| 4.15 | Fork spread | mm | |
| 4.16 | Minimum turing radius | mm | 1770 |
| 4.17 | Ground Clearance | mm | 95 |
| Speed | 5.1 | / Travel speedwith/without load | km/h | 13/15 |
| 5.2 | / Lift speedwith/without load | mm/s | 350/460 |
| 5.3 | / Lift speedwith/without load | mm/s | 450/400 |
| 5.4 | / Max.gradeability,with/without load | % | 1215 |
| 5.5 | Service brake | | |
| Power | 6.1 | Drive motor rating S2 60 min | kW | 7.5 |
| 6.2 | Lift motor rating at S3 15% | kW | 9 |
| 6.3 | Battery voltage/nominal capacity K5 | V/Ah | 80/200 |
| 6.4 | Battery weight | kg | 370 |
| Control mode | 7.1 | Type of drive control | | DUAL AC2 |
Battrey charger combinations
The BYD Lithiun Iron Phosphate battery can be fully recharged in just 2 hours,
and be used immediately after without the cooling time required in common batteries.
Several chargers are available to customize the charging time to the customer needs.
Multifunction TFT Screen
Displays travel speed, battery remaining capacity, clock, working hours and accumulated working hours,
Three spped modes setting
Active stabilization system
Pallet fork automatic leveling control joystick buttons on-hold down forward,
forward operation, pallet fork can automatically stop in a horizontal position.
To be on the safe side, goods fork at up to 2m above and a fork stock,
hold down the button to forward operating at the same time
Braking energy feedback system
FAQ
1. What's the Certificate do you have?
XGMA workshop meet with the ISO9001 Quality System.
And all of our products are with CE certificate.
2. Can you customize and design as the clients' requirement?
XGMA will try its best to meet all kinds of clients' special requirements.
And for new products that have not been into the market yet,
we have our technical team to help the clients.
All kinds of attachments such as roll paper clamp,
side shifter and so on can be available.
3. How long is the warranty of your products?
All of products are with 1 year / 2000 working hours subject to the first.
4. What's the payment terms do you accept?
Normally we accept 30% deposit, 70%balance before delivery.
5. Delivery date:
If clients need normal products, we will deliver the products within 15days.
If clients need customerized products, the delivery date depend on the requirements.
